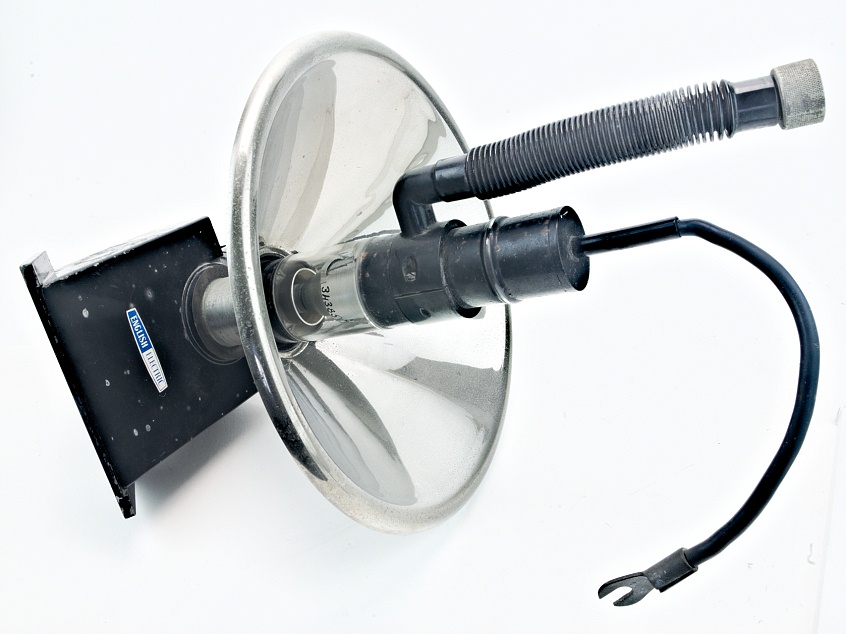

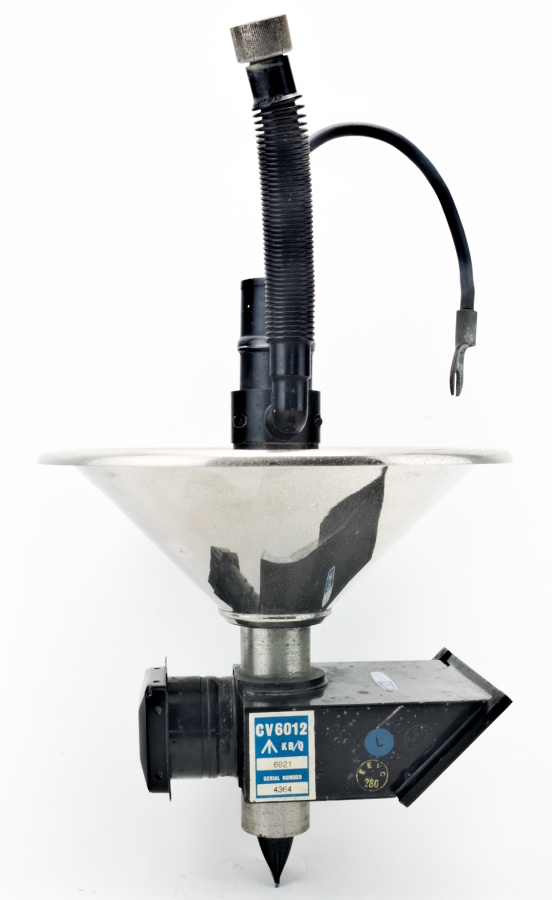

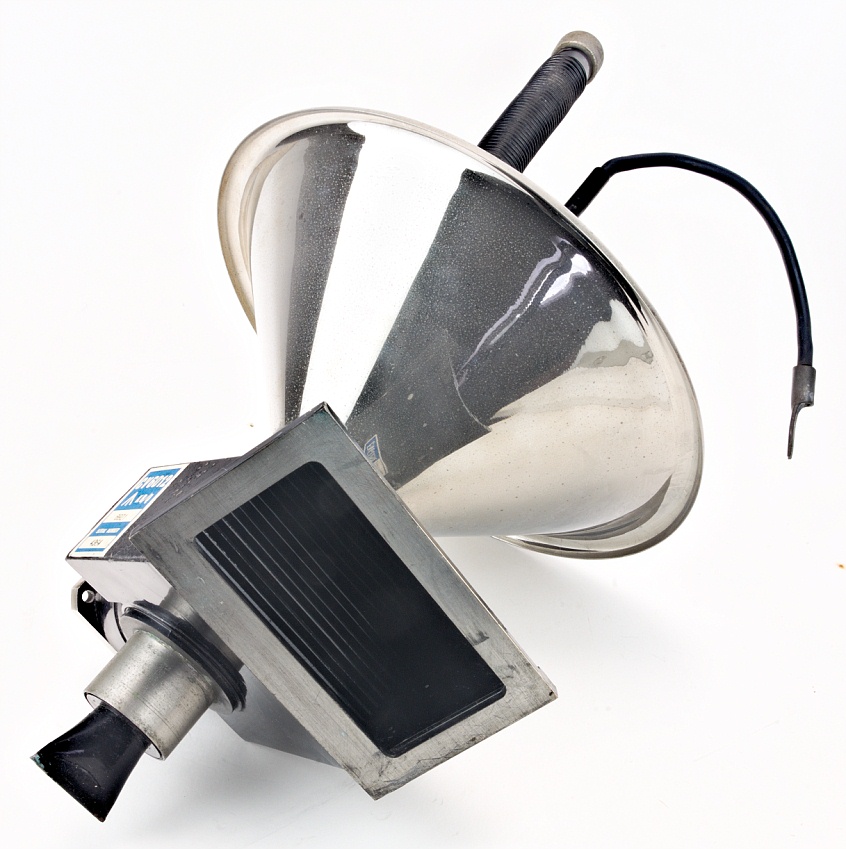

EEV CV6012 Pulsed X-Band Magnetron
Magnétron en régime pulsé
Impuls-Magnetron

Forced-air cooled multi-resonator pulse operated magnetron.
Peak input power rating: 1.9 MW.
Designed for use with a separate electro-magnet.

Fiche technique • Data sheet • Datenblatt: M504.pdf

Thanks to Jeremy Harmer who donated this magnetron.



Hauteur • Height • Höhe : 31 cm • 12" 1/4
Diamètre • Diameter • Durchmesser : 20 cm • 8"

The cooling pipe attached alongside the single connecting is used to blow air onto the glass stem, exiting the other side through a hole.
It also appears to form one connection.



---
