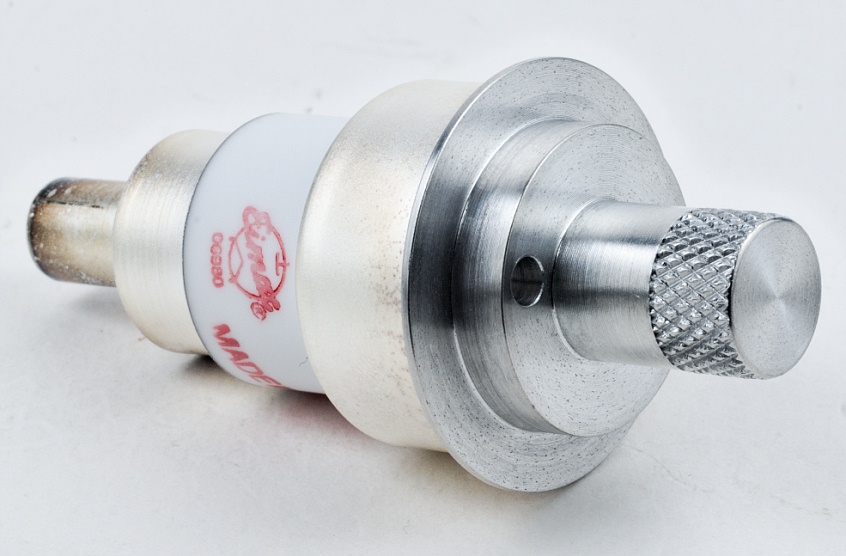

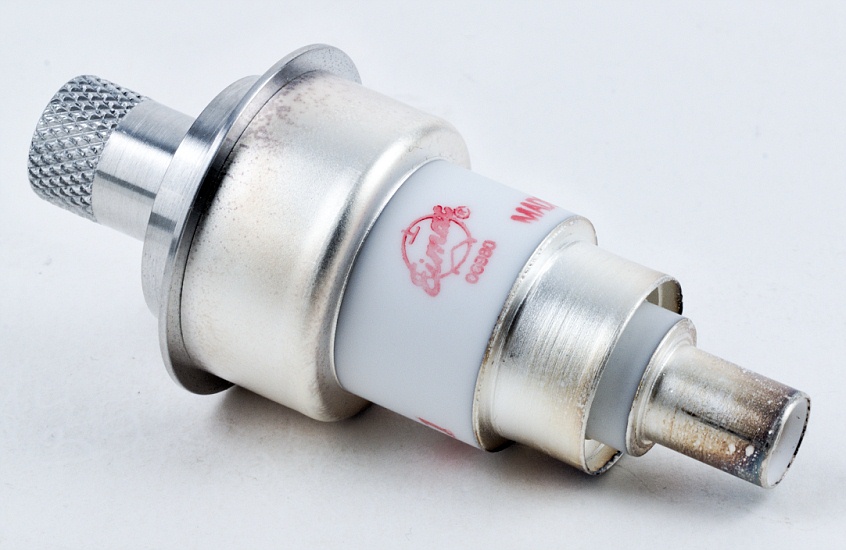

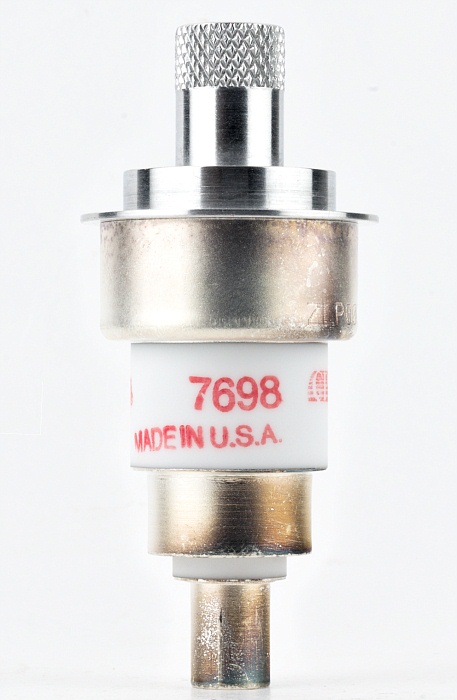

EIMAC 7698 UHF Planar Triode
Triode à structure plane
Scheibentriode

Designed for use in CW, grid- or plate-pulsed oscillator, amplifier, frequency multiplier service up to 3 GHz.
May also be used in pulse modulator or voltage regulator service.
100 W CW at 1 GHz.

Fiche technique • Data sheet • Datenblatt: 7211.pdf

Thanks to the two former Gelina facility technicians who donated this tube.



Hauteur • Height • Höhe : 67 mm • 2" 5/8
Diamètre • Diameter • Durchmesser : max. 30 mm • 1" 3/16



---
