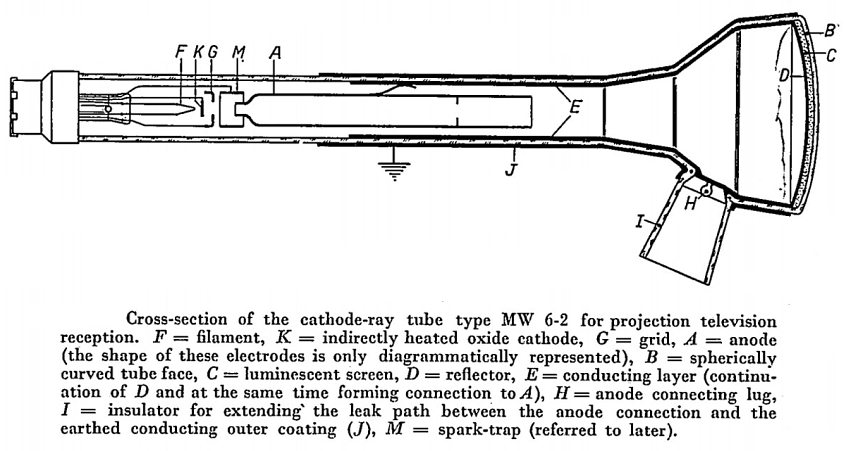

MULLARD MW6/2 Television Projection Tube
Tube de télévision pour projection
Projektionsfernsehröhre

Popular in the 1940's and 50's to get bigger TV pictures by clever magnifying optics.

Fiche technique • Data sheet • Datenblatt: MW6-2.pdf



Longueur • Length • Länge : 26,5 cm • 10" 4/10
Diamètre • Diameter • Durchmesser : 65 mm • 2" 6/10

The Philips optical system for projecting television pictures (one side of the mounting box removed).

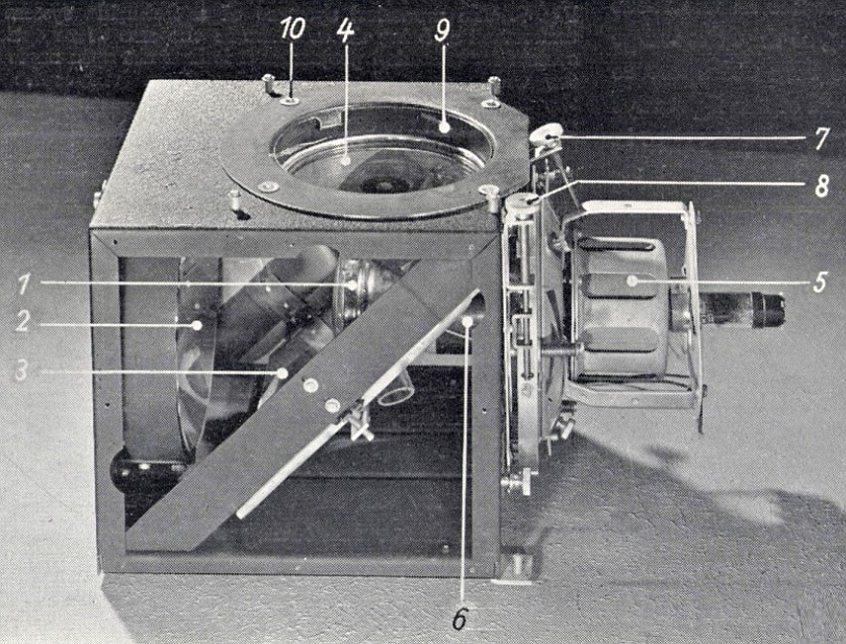

1 is the face of the cathode-ray tube, 2 the spherical mirror, 3 the plane mirror, 4 the correction plate, 5 the focusing coil, 6 the deflection coils, 7 one of the adjusting screws for aligning the axis of the cathode-ray tube, 8 the screw for adjusting the distance between the tube screen and the spherical mirror, 9 screws fixing the correction plate holder after the plate has been set to the correct height, 10 fixing screws around which some play is left in the rim of the correction plate holder for the purpose of centering.

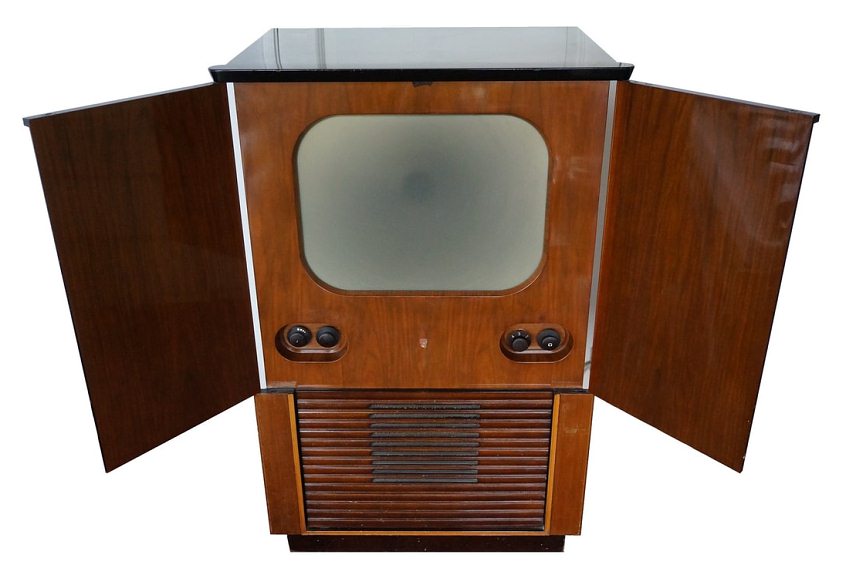

Philips TD2312A Rear Projection TV



---
