Супервидикон ЛИ-702
Supervidicon LI-702
Tube de prise de vue
Bildaufnahmeröhre

Scanning-transmitting supervidicon television camera tube with a diode-mosaic silicon target.

With high photo sensitivity, broad spectrum range, no photoelectric inertia, capability of storing an image on the target, this supervidicon is suitable both for recording of one-time short-duration processes and for analyzing stationary dim objects with the capability of storing an image on the target.

Spectral sensitivity: 400-800 nm
Signal current: at least 0.35 mA

• A.A. Makarov & V.A. Chikurov, Characteristics of the LI-702-3 Supervidicon as Element of a Multichannel Photon Counter, 1989 (in Russian).



Longueur • Length • Länge : 215 mm • 8" 1/2
Diamètre • Diameter • Durchmesser : max. 68 mm • 2" 5/8

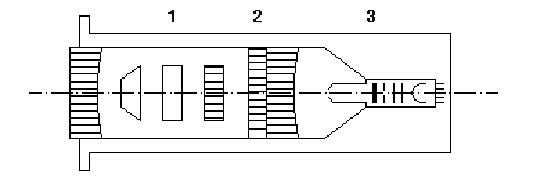

1 - MCP (microchannel plate) image intensifier
2 - Connection of the image intensifier and supervidicon by means of fiberglass plate
3 - SIT supervidicon



---
