Neon Crater Lamp for Mechanical Television Set
Lampe-cratère au néon pour téléviseur mécanique
Neon-Kraterlampe für mechanisches Fernsehgerät

A crater lamp is a high intensity neon lamp with a very small spot size; its brightness is proportional to the signal current sent through the lamp. It provides, therefore, a bright point source of light which is modulated behind the spinning Nipkow disc of a mechanical television to assemble the picture. This allows a somewhat larger and brighter picture than is possible with flat plate tubes like the DeForest 601 Vis-Ion Kino Lamp.

Mechanical television (Wikipedia)
How Mechanical TV Works
How First Mechanical Television Works? - Animation
32-line Nipkow disc television with neon bulb as the light source (video)
D.E. Replogue, The Crater Tube, Television News, Nov.-Dec., 1931

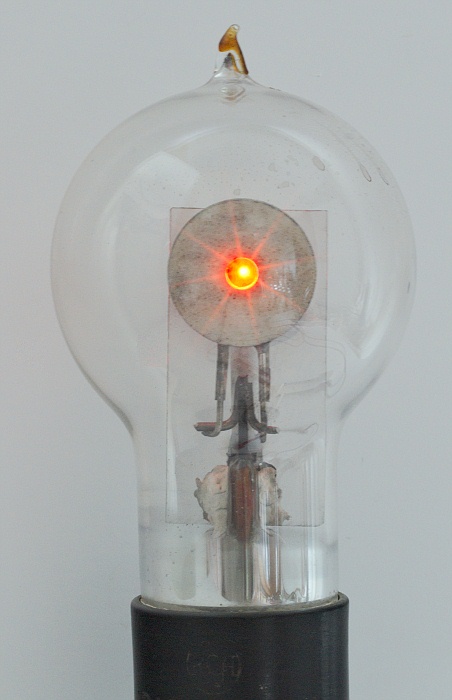

This crater lamp was made by G-M Laboratories of Chicago for the Western Television Corp. The unusual bayonet base has been replaced by a standard 4-pin base on this tube.



Neon Crater Lamp for Mechanical Television Set

Diamètre • Diameter • Durchmesser : 59 mm • 2" 3/8
Hauteur • Height • Höhe : 135 mm • 5" 1/4

Neon Crater Lamp for Mechanical Television Set

Neon Crater Lamp for Mechanical Television Set

Neon Crater Lamp for Mechanical Television Set

Neon Crater Lamp for Mechanical Television Set

Western Television Corp. Ad
