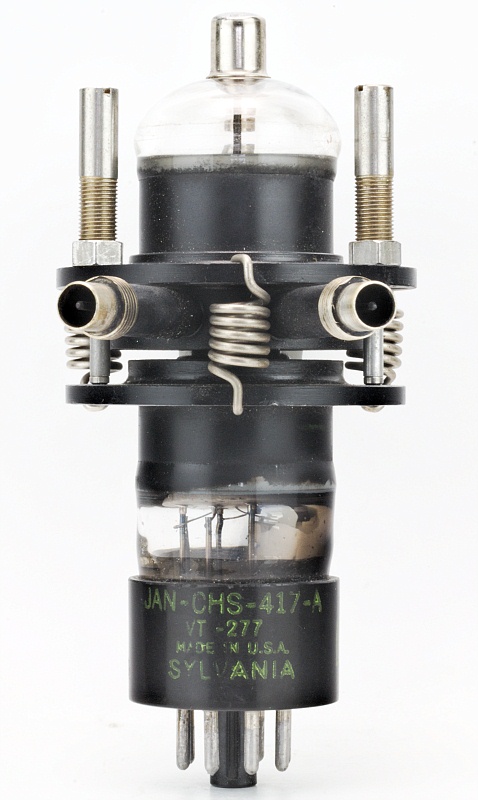

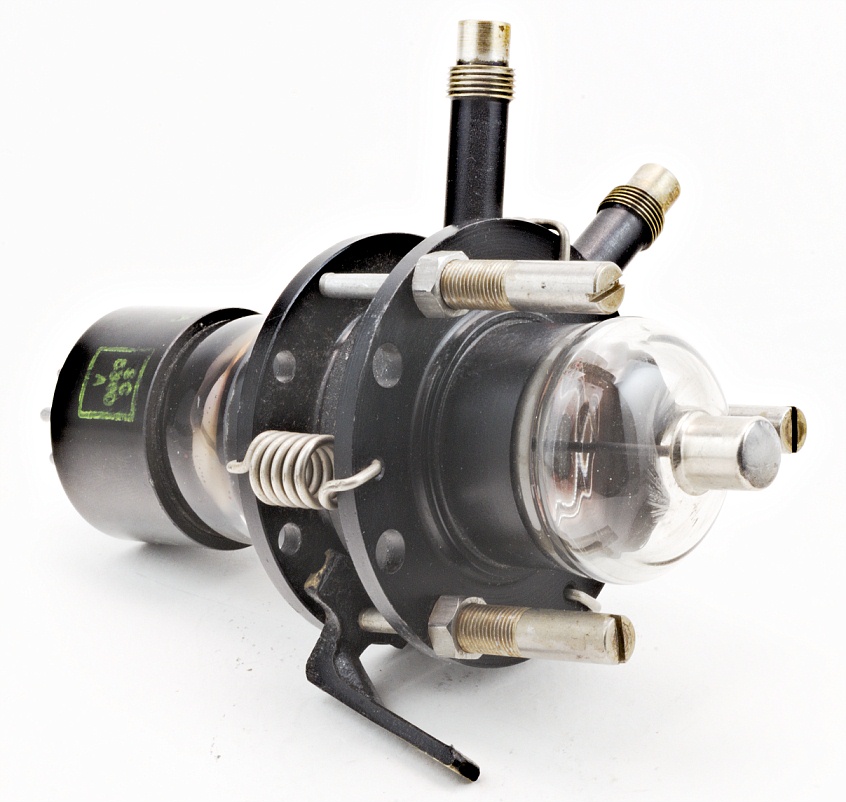

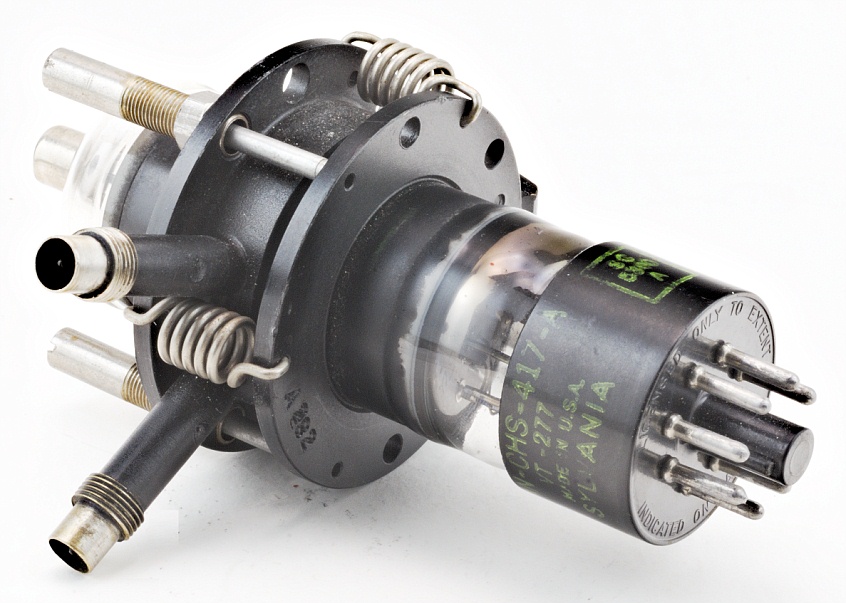

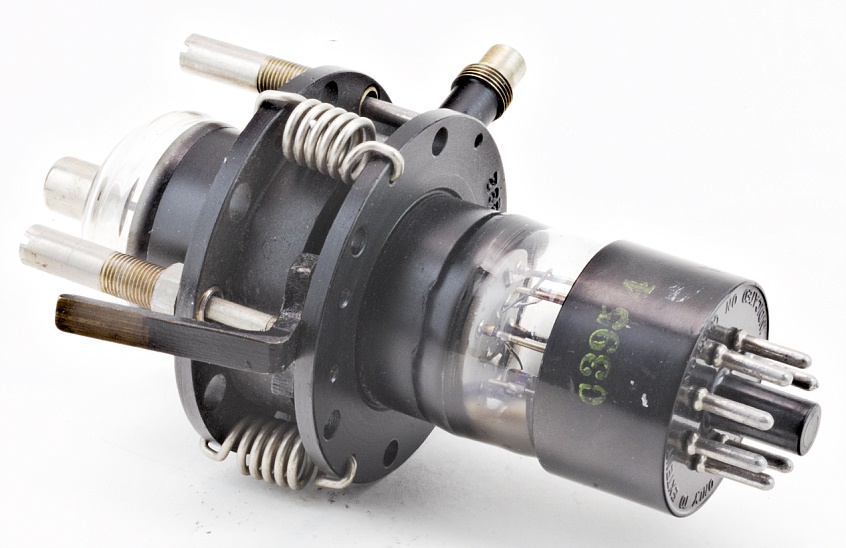

SYLVANIA JAN-CHS-417A Integral Cavity Reflex Klystron
Klystron reflex accordable
Abstimmbare Reflexklystron

WW-II Military Radio Signal Corps Radar Klystron.
Equivalent for Sperry 417A.
Tunable from 2,650 to 3,330 MHz.
Heater: 6.3 V • 1 A.
Output power: 250 mW.

The 417A was used in the AN/CPN-3 transportable S-band radar beacon.



Hauteur • Height • Höhe : 12,7 cm • 5"

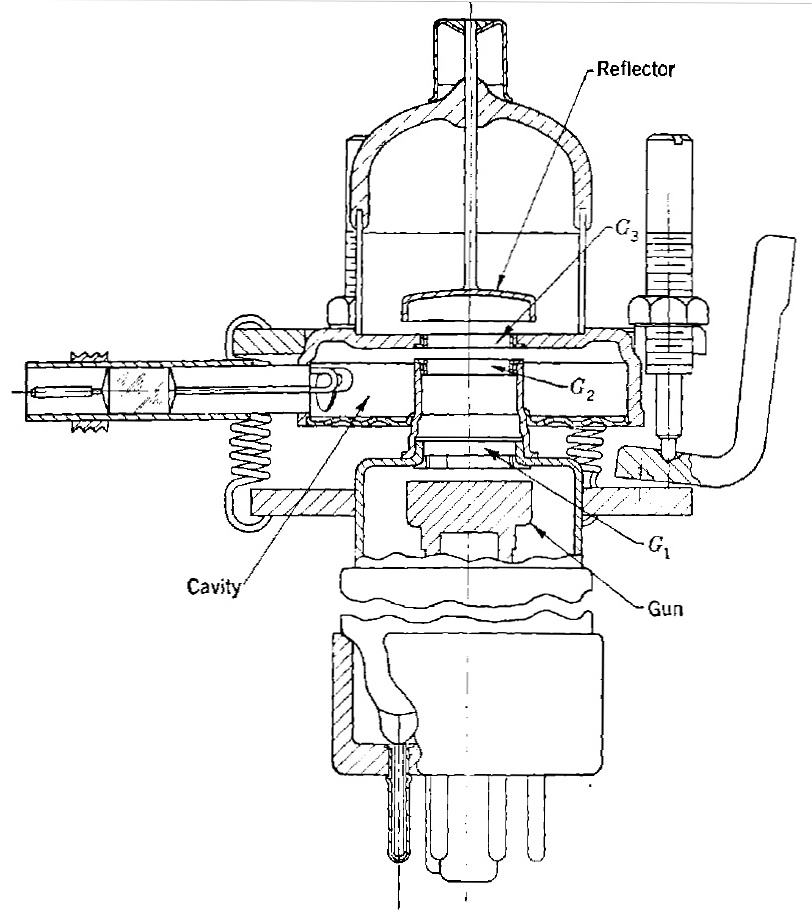

Cross section of a 417A mounted in tuner.



---
