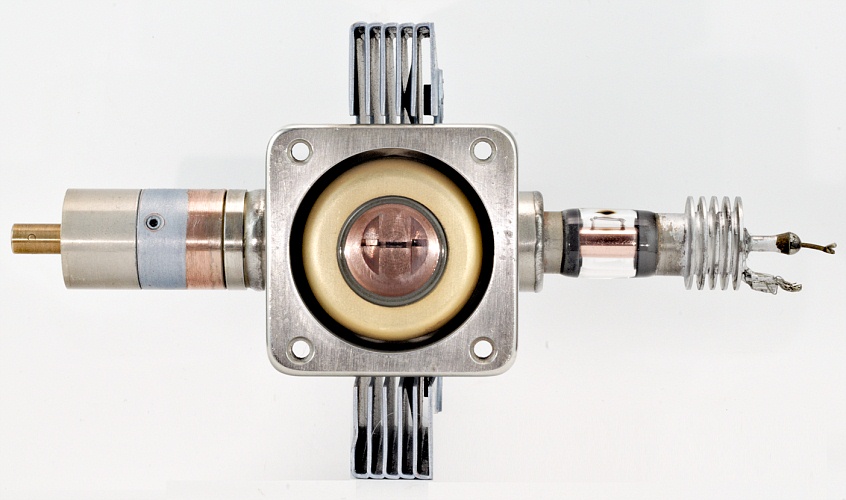

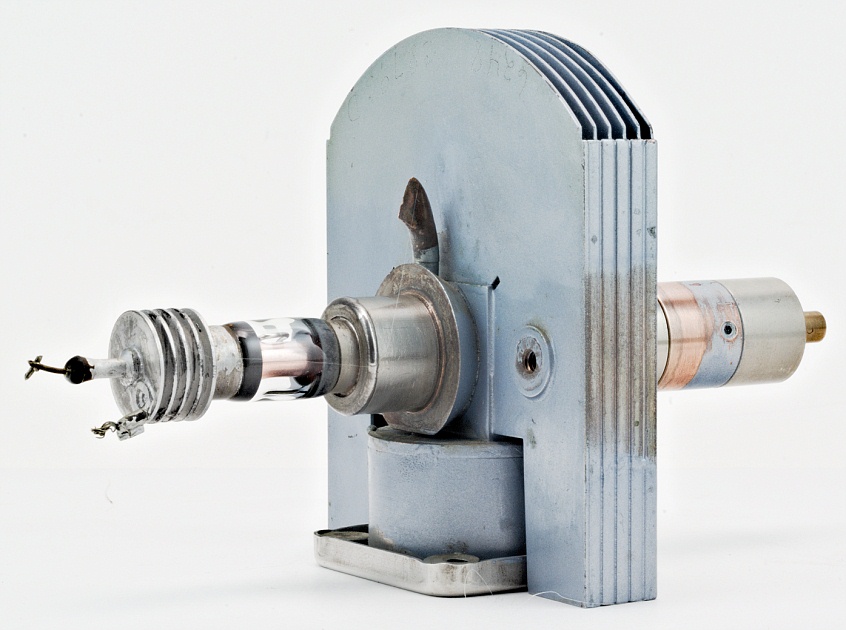

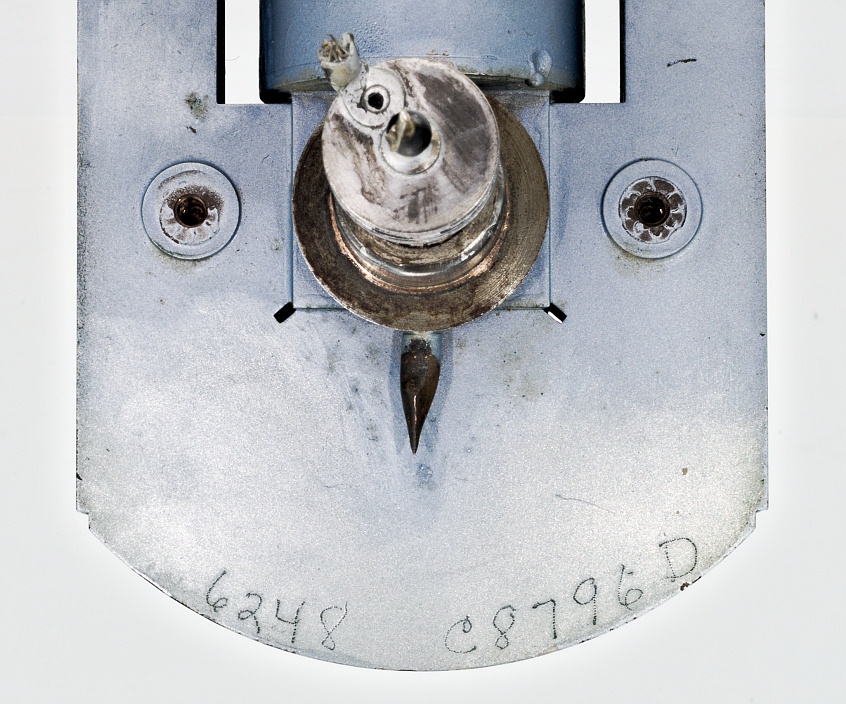

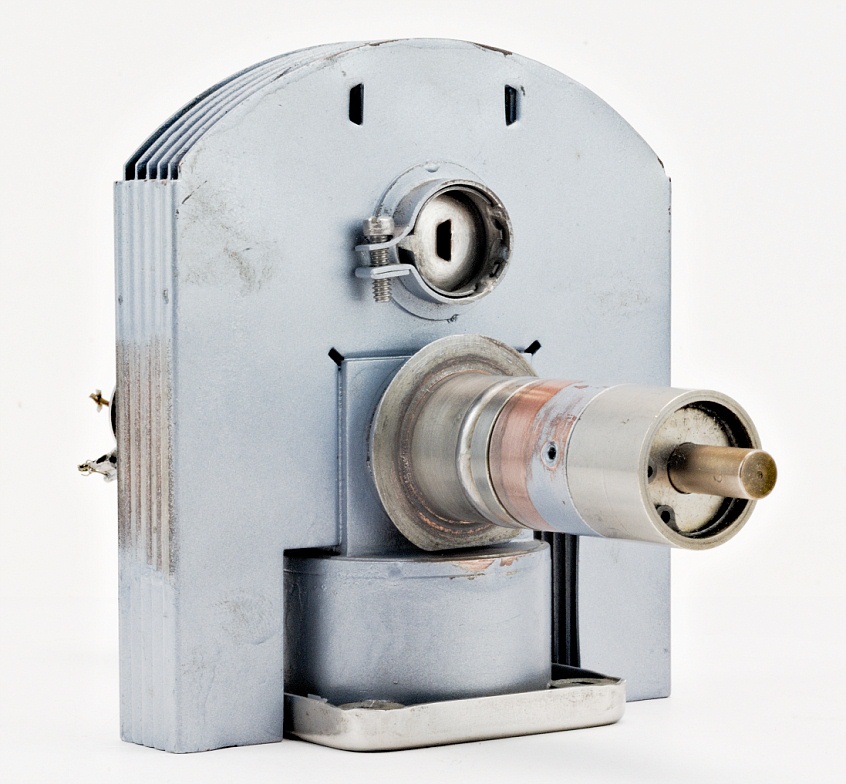

Raytheon 6248 / QK311 Magnetron (without Magnet)
Magnétron (sans l'aimant)
Magnetron (ohne Magnet)

NSN 5960-00-581-9120.
8.7-8.9 GHz.
WG output: 3.6 kV @ 900 mA.
1.2 kW peak output.
Typically pulsed by a 4PR60B tetrode.
Used in AN/APN-81 Doppler Navigation System, and AN/APN-108 Doppler set on Boeing B-52 Stratofortress.



168 x 86 x 97 mm • 6"5/8 x 3"3/8 x 3"7/8

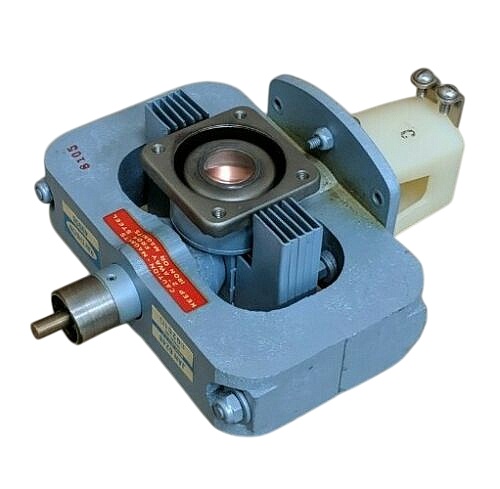

Raytheon 6248 / QK311 complete



---
