NEC Traveling Wave Tube LD-593A
Tube à propagation d'onde / Tube à ondes progressives
Wanderfeldröhre

NEC = Nippon Electric Corporation.

Structure: PPM Waveguide Coupled Package Type
Frequency range: 10600 - 11700 Mc
Heater voltage: 6.3 V
Heater current: 0.6 A
Anode voltage: -35 V
Acceleration electrode voltage: 1.8 kV
Helix voltage: 4 kV
Collector voltage: 2 kV
Collector current: 22 mA
Low-Signal gain: 34 dB
Saturation output: 6 W

Fiche technique • Data sheet • Datenblatt: NEC_TWTs.pdf



Click to enlarge

Longueur • Length • Länge : 43,6 cm • 17" 1/8

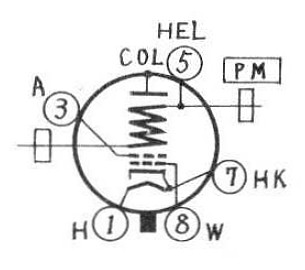

Base connection diagram



---
