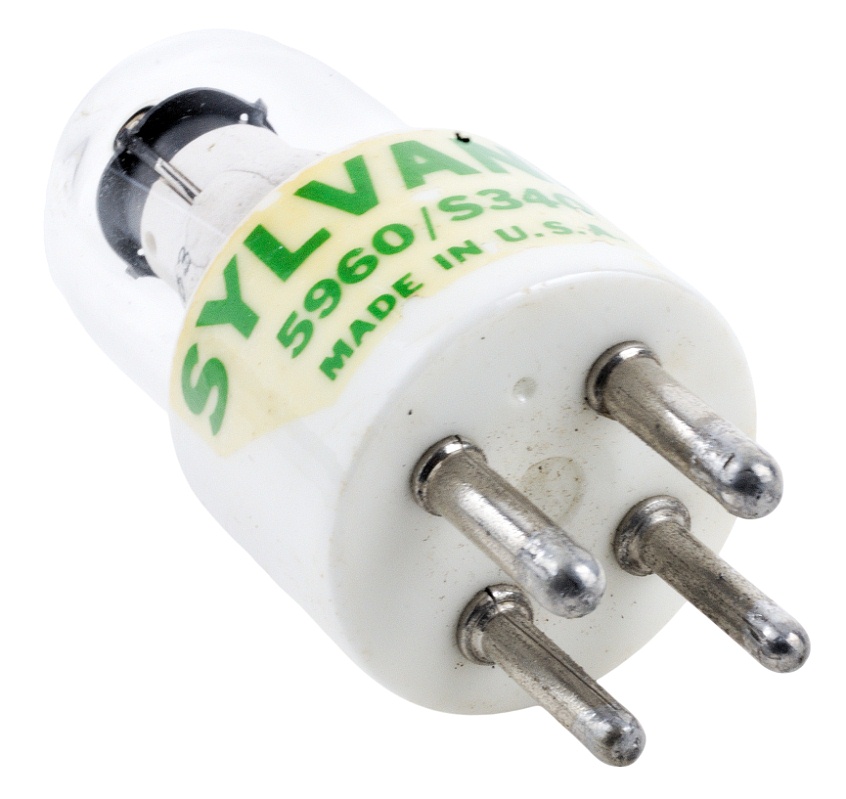

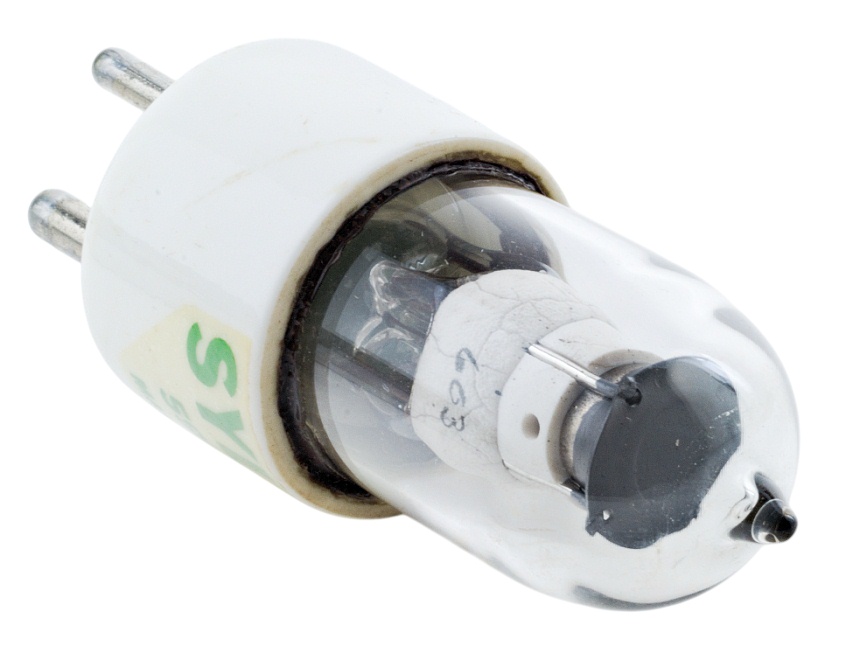

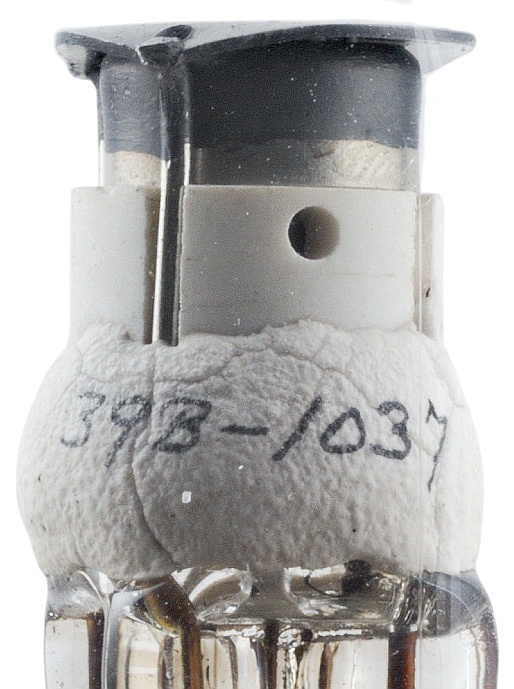

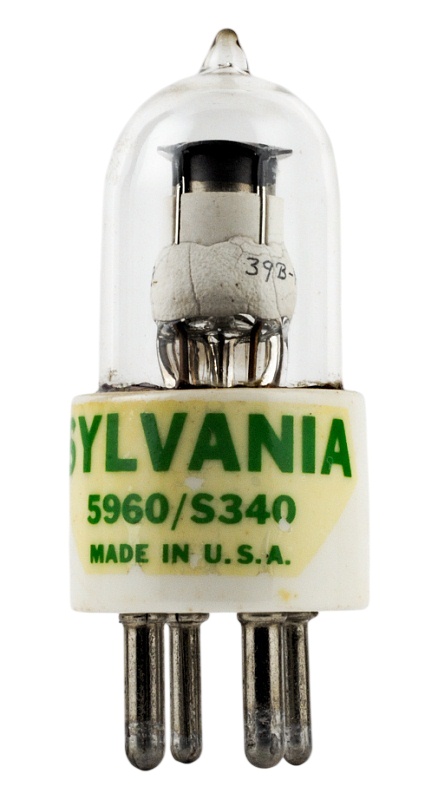

SYLVANIA 5960/S340 Gas-filled Cold Cathode Trigger Tube
Tube déclencheur à cathode froide
Relaisröhre mit kalter Katode

The 5960/S340 (also TD-1) is a small cold cathode thyratron originally made by Bendix. The Sylvania tube has different dimensions than the original tubes.
Designed for high shock and vibration at extremes of temperature and pressure.
They were used in ignition systems for jet engines.

NSN 5960-01-026-7379, 5960-01-148-5214.
Date packed: 3-54.

Fiche technique • Data sheet • Datenblatt: 5960 & S340.



Hauteur • Height • Höhe : 72 mm • 2" 7/8
Diamètre • Diameter • Durchmesser : 29 mm • 1" 1/8



---
