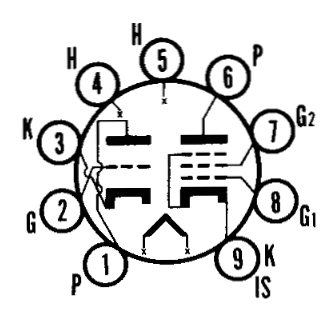

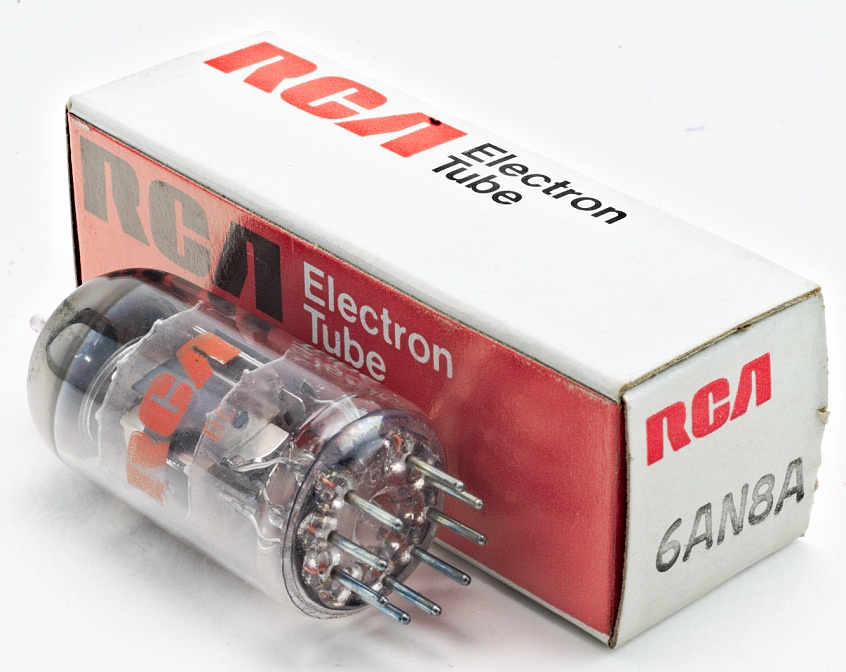

RCA 6AN8A Medium-Mu Triode - Sharp-Cutoff Pentode

For use on series heater chains.
The pentode section is used as a video amplifier or reactance tube while the triode performs variously as a phase detector, gating tube, oscillator or phase splitter.

Fiche technique • Data sheet • Datenblatt: 6AN8A.pdf

Thanks to the two former Gelina facility technicians who donated this tube.

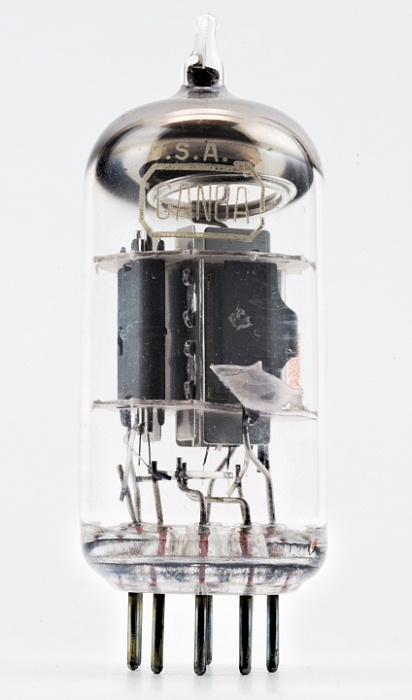

Hauteur • Height • Höhe : 54 mm • 2" 1/8
Diamètre • Diameter • Durchmesser : 20 mm • 13/16"



---
