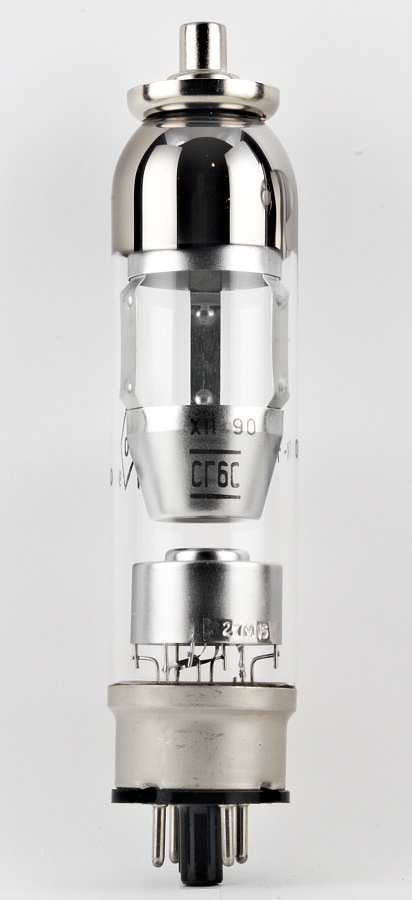

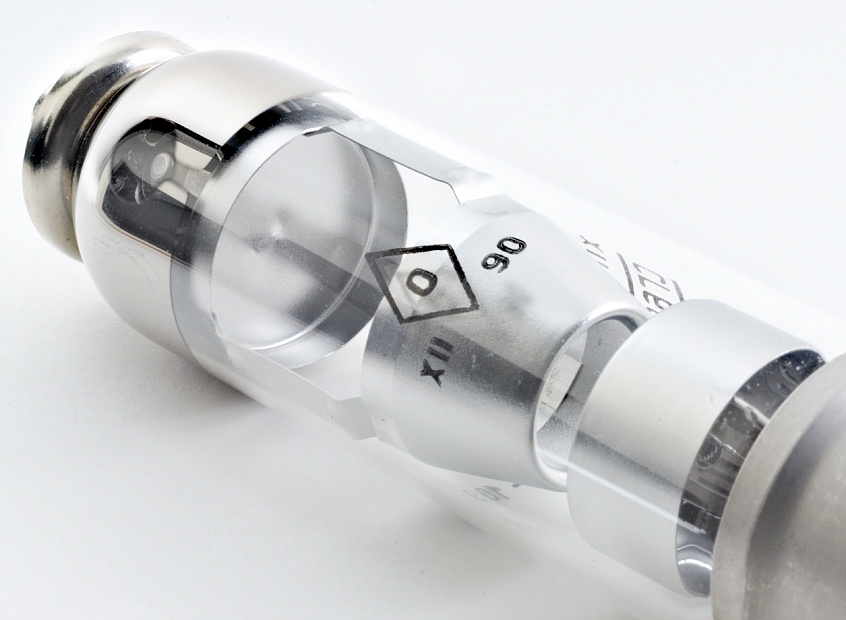

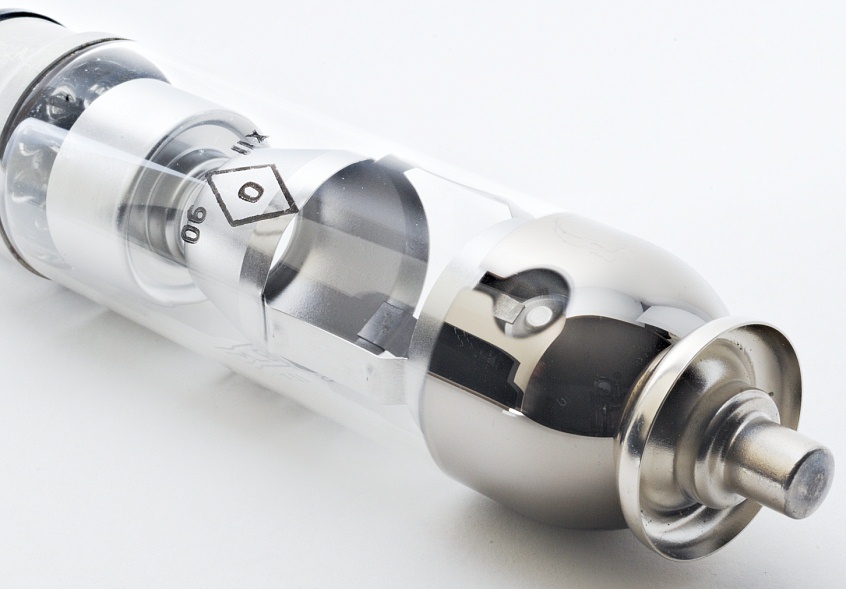

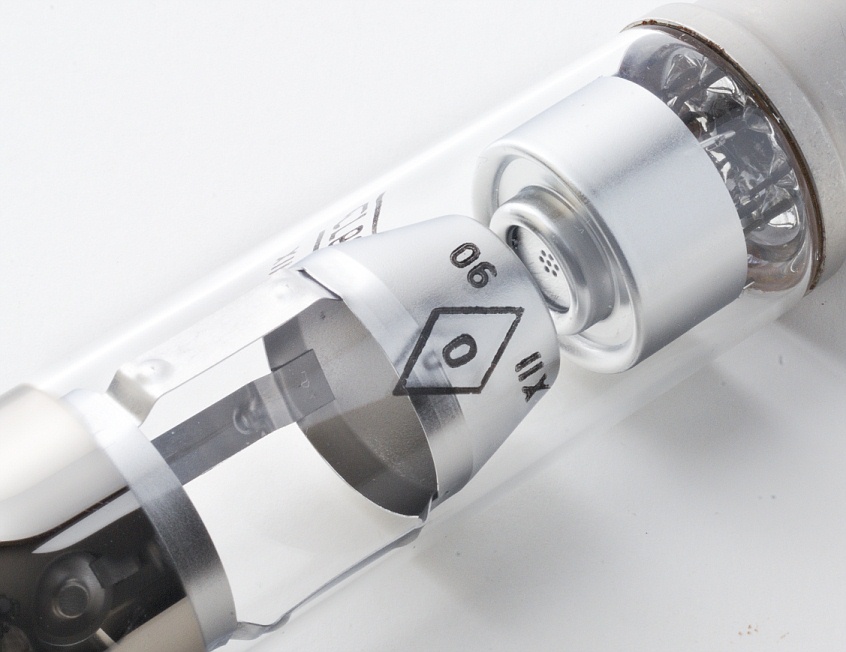

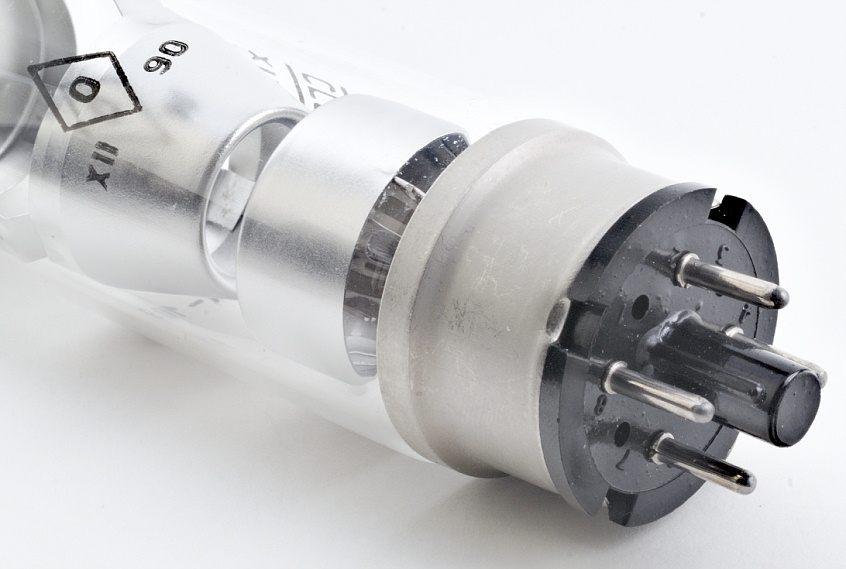

СГ6С ВЫсоковольтный вакуумнЫй стабилитрон
Soviet High Voltage Stabilizer Tube SG6S
Tube stabilisateur haute tension
Hochspannungsstabilisatorröhre

Designed for direct stabilization of DC voltage in high-voltage installations.
The SG6S Zener diode is used in general-purpose electronic devices.

Filament voltage: 5.8 .. 7.5 V.
Anode voltage: max. 25 kV.
Modulator voltage: -50 ± 30 V (max. -150).
Current in the anode circuit: 100 µA (max. 300).
Steepness: 15 mA/V.

Fiche technique • Data sheet • Datenblatt: SG6Sa.pdf & SG6Sb.pdf & SG6Sc.pdf



Hauteur • Height • Höhe : 158 mm • 6" 1/4
Diamètre • Diameter • Durchmesser : 34 mm • 1" 3/8



---
