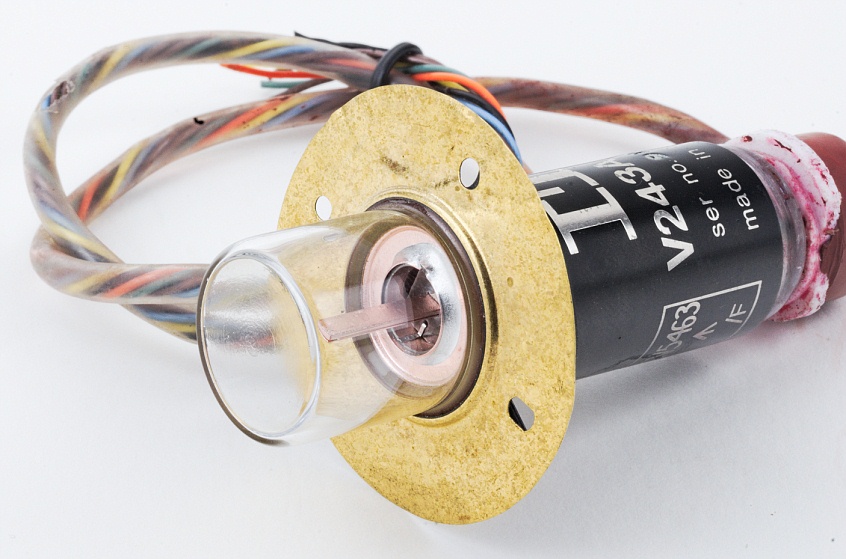

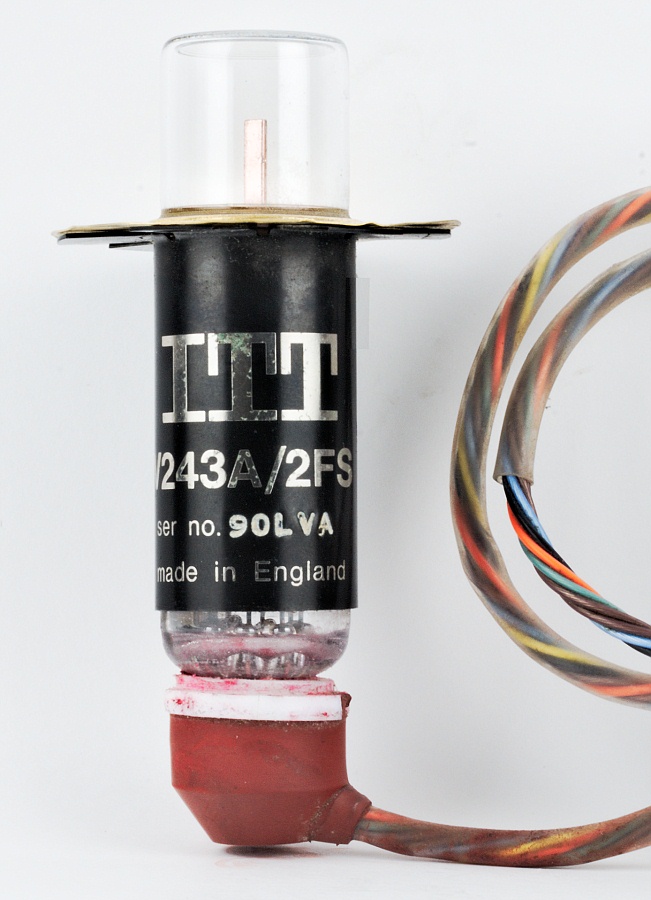

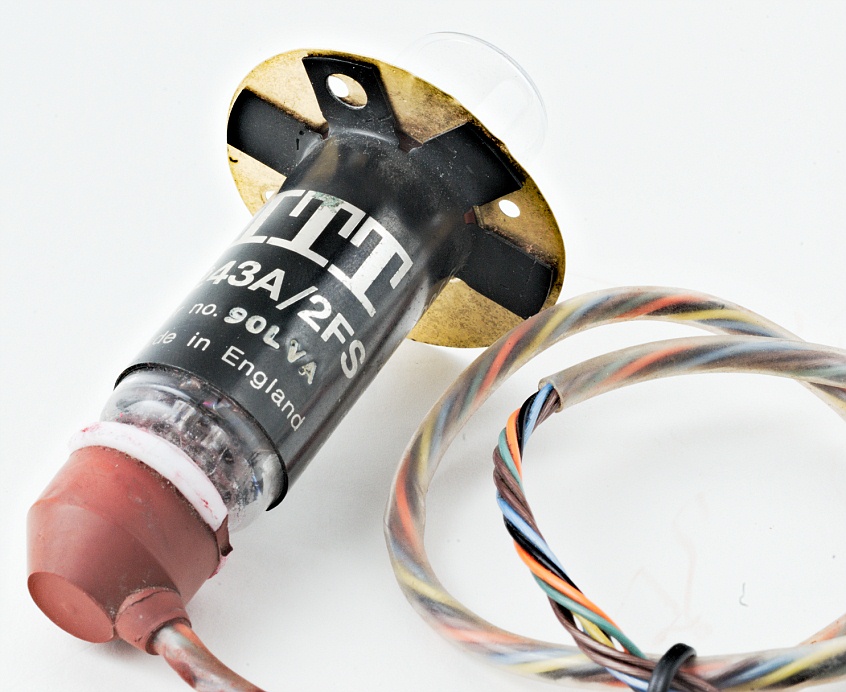

ITT V243A/2FS (CV5463) Velocity Modulated Oscillator (Heil Tube)
Tube à modulation de vitesse
Geschwindigkeitsmodulierter Oszillator (Heil-Röhre)

Made in England by STC, Paignton (Devon) for the American parent ITT.

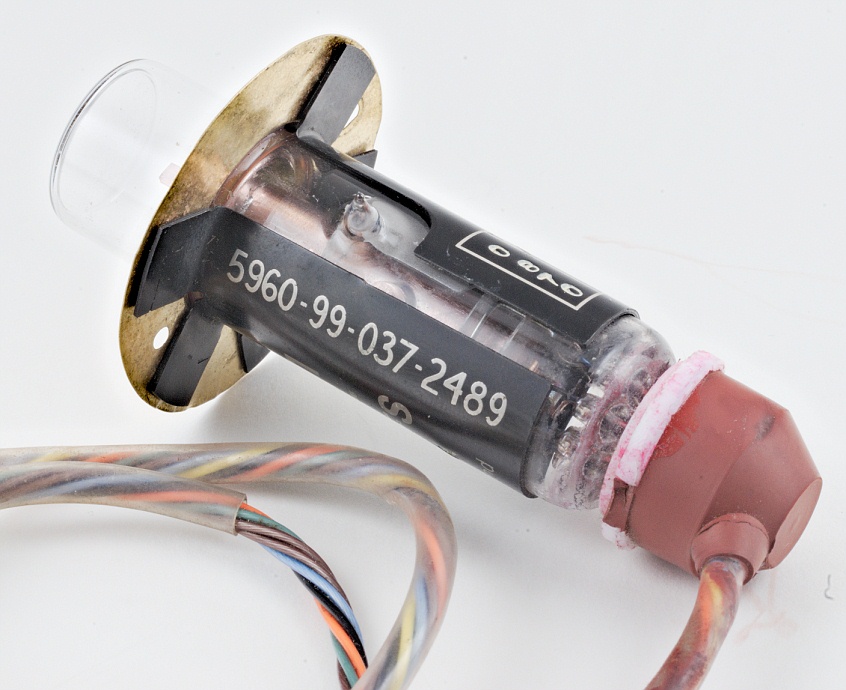

NATO/NSN Stock Number 5960-99-037-2489.

First introduced in 1955, the CV5463 was primarily intended for use in the STC Miniature Radio Altimeter.
The tube is designed to withstand mechanical shock and vibration and to operate in ambient temperatures up to 100°C.
The tube is fitted with a heat dissipating shield as a standard attachment, and the base is an integral part of the tube.

Fiche technique • Data sheet • Datenblatt: V243A-2FS.pdf & STC_VMO.pdf

• The Heil Tube.

• A. Arsenjewa-Heil & 0. Heil, Eine neue Methode zur Erzeugung kurzer, ungedämpfter, elektromagnetischer Wellen grosser Intensität, Z. Physik 95, 752–762, 1935.

• Herbert Döring, Der Heil'sche Generator, eine heute vergessene Bauform eines Klystrons, Funkgeschichte Nr. 80, 1991.



Hauteur • Height • Höhe : 8 cm • 3" 1/8
Diamètre • Diameter • Durchmesser : 19 mm • 3/4"



---
